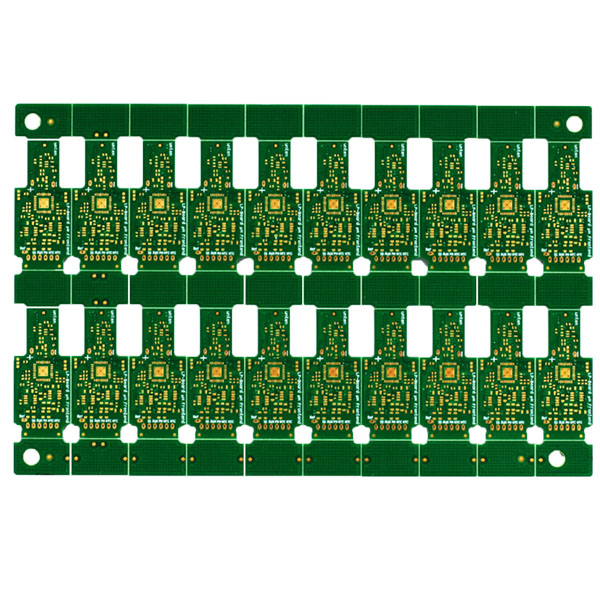

Product type: Multi layer board
texture of material: FR4 S1141
Application field: Medical equipment
Layer number/plate thickness: 4L/1.0mm
Surface treatment: immersion gold
Line width/spacing: 8/8mil
Minimum aperture: 0.4mm
Medical equipment has high electrical performance requirements for circuit boards. Using FR4 S1141, a board with low dielectric loss and low dielectric constant, can effectively reduce signal transmission delay, crosstalk, and waveform distortion. At the same time, it also has good characteristics such as moisture resistance, high temperature resistance, and corrosion resistance.
Medical displays require long-term operation and can maintain good stability and reliability in various environments, providing reliable support for doctors' diagnosis and treatment. It is important to avoid any potential impact on patients caused by malfunctions. Our circuit board adopts high-precision wiring with a line width/spacing of 8/8mil, ensuring the image quality and data transmission efficiency of the display; The aperture accuracy is high, at 0.4mm, which is conducive to welding and assembly processes, ensuring reliable circuit connections.
