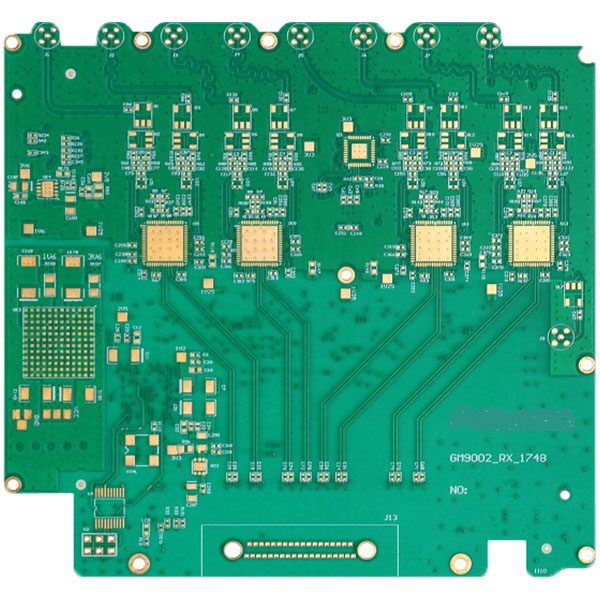

Product type: Mixed pressure multi-layer board
texture of material: FR4+Rogers4350B
Application field: High frequency communication
Layer number/plate thickness: 10L/1.6mm
Surface treatment: immersion gold
Line width/spacing: 4/4mil
Minimum aperture: 0.2mm
Technical features: special materials, mixed lamination, fine wiring
Mixed voltage circuit boards can integrate multiple functions, such as simultaneously processing digital and analog signals,
enabling them to achieve multiple functions on a single circuit board; Moreover,
the hybrid board can reduce the number of circuit boards in the end product,
thereby reducing the weight and overall size of the product,
making it more suitable for lightweight and compact devices.
Another major advantage of mixed voltage circuit boards is that they can adapt well to working environments at different voltages,
and the power requirements of different terminal products are also different. When facing high voltage environments,
through optimized design and material selection, they can withstand higher voltages without being easily damaged;
When facing low voltage environments, hybrid panels can effectively utilize electrical energy, reduce energy waste,
and also help reduce the heat generated during the operation of circuit boards. In the face of unstable power supply,
the mixed voltage circuit board can automatically switch between different power modes,
allowing the device to dynamically adjust the voltage according to actual working needs.
